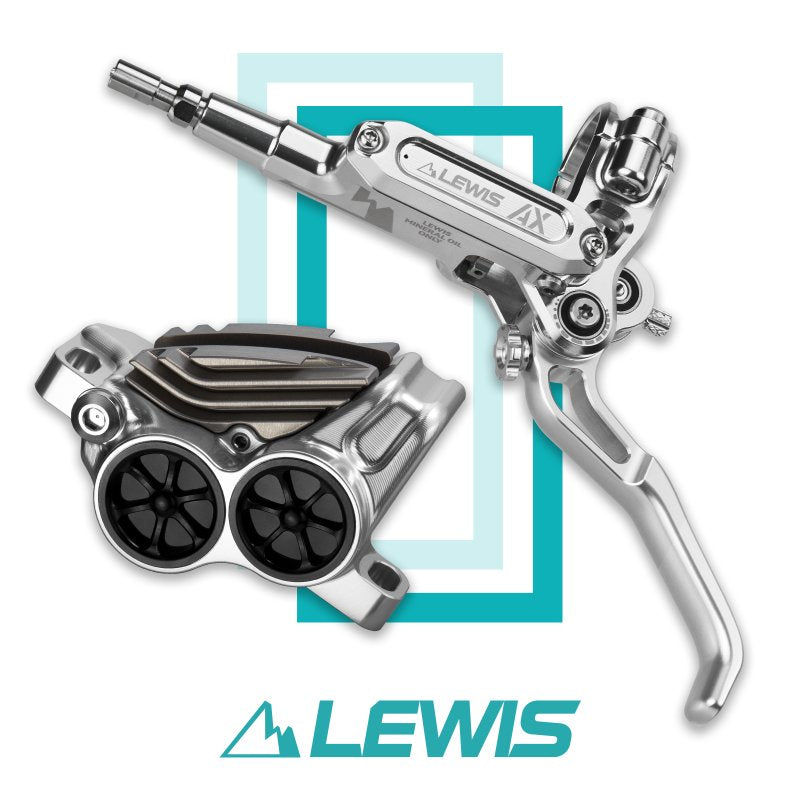

Lewis AX 18-20 Front and Rear
110/180cm / BLACK
6.000,00 kr
Udsalgspris
6.000,00 kr
Normalpris
Gå til produktoplysninger
LEWIS BIKE
Lewis AX 18-20 Front and Rear
6.000,00 kr
Udsalgspris
6.000,00 kr
Normalpris
- Velegnet til downhill og enduro
- Materiale: 7075-T6 aluminium
- 4 stempler (2 × 18 mm og 2 × 20 mm)
- Mineralolie
- Tre justeringsmuligheder: grebsafstand (Lever Reach), bidepunkt (Bite Point) og udvekslingsforhold (Leverage Ratio)
- Værktøjsfri justering af grebsafstand og bidepunkt
- Monobloc-bremsekaliber i ét stykke for maksimal stivhed
- Separate køleribber for forbedret varmeafledning og høj ydeevne ved høje temperaturer
- Ny og forbedret tilslutning med anti-olielækagesystem
- Opgraderet justeringsknap til udvekslingsforhold
Vægt
- Komplet bremse: 311 g (ekskl. bremseslange og bremseklodser)
- Bremsegreb: 109 g
- Bremsekaliber: 202 g (ekskl. bremseklodser)
SPECIFICATIONS

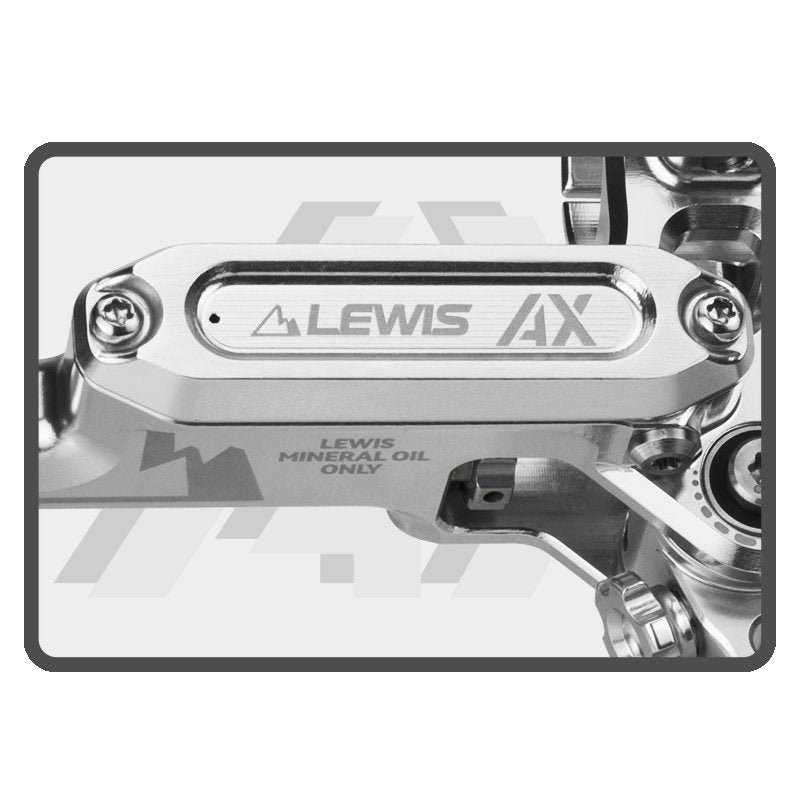

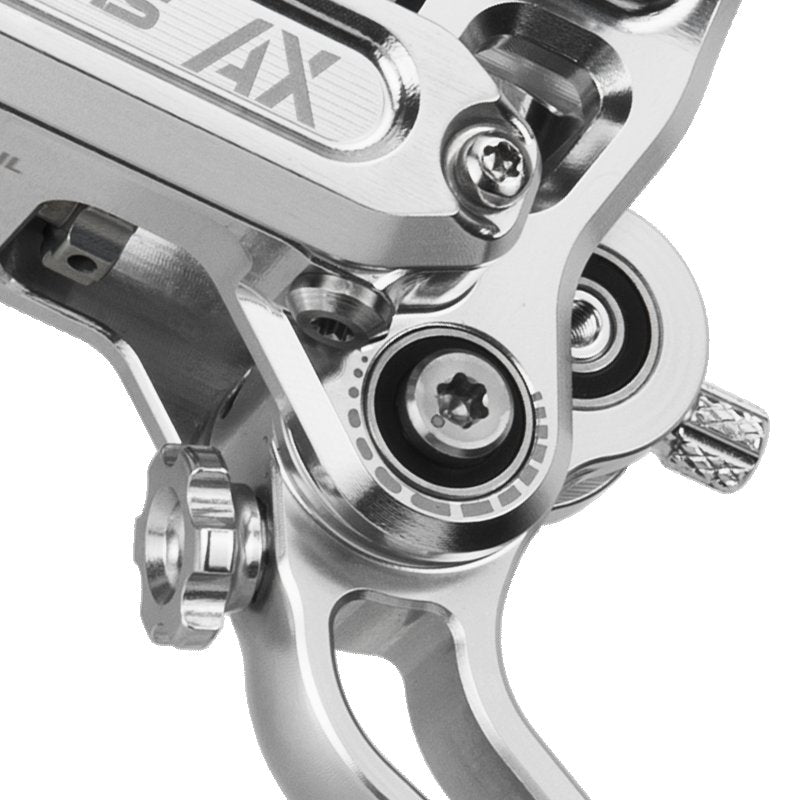

| MASTER CYLINDER | |
| Type | Axial |
| Material | CNC 7075T6 Aluminum |
| Body Finish | Black, Silver |
| Clamp Color | Black, Silver |
| Clamp Type | Split |
| Screws | Stainless Steel |

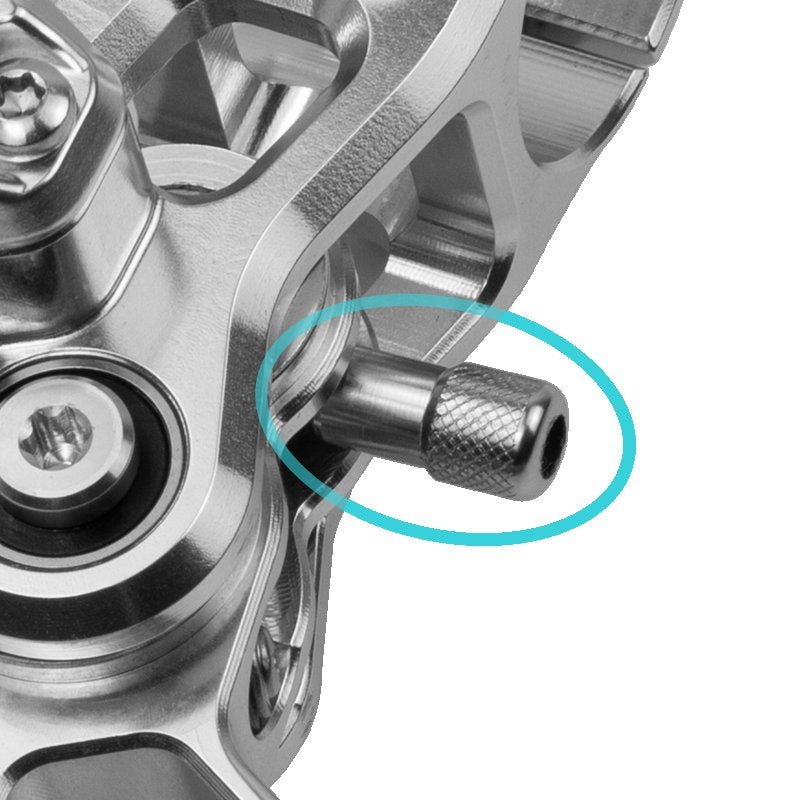

| Adjustable Lever Reach | YES, Tool Free |

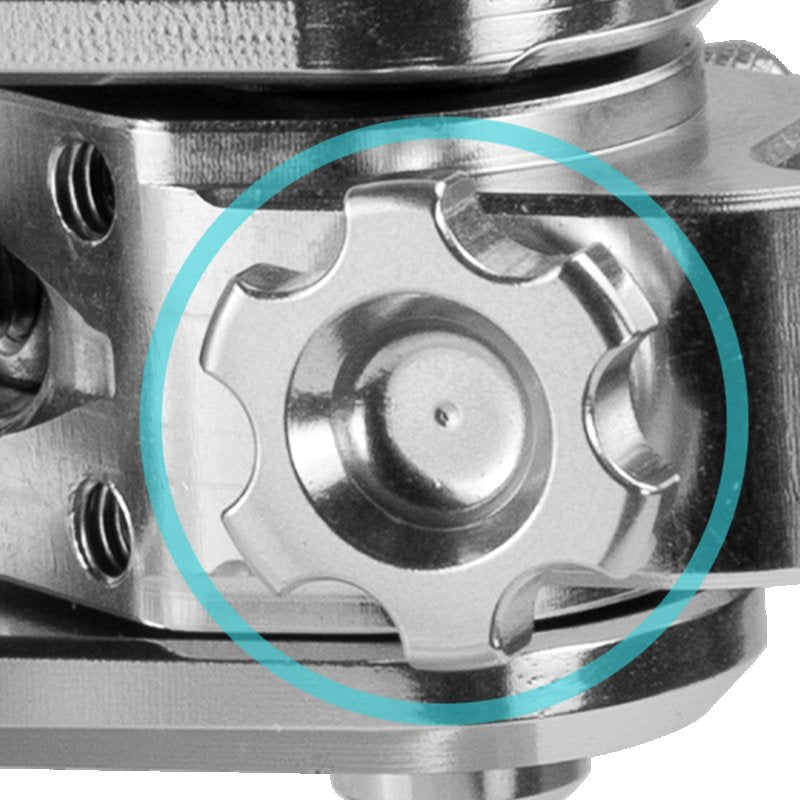

| Adjustable Pad Bite Point | YES, Tool Free |

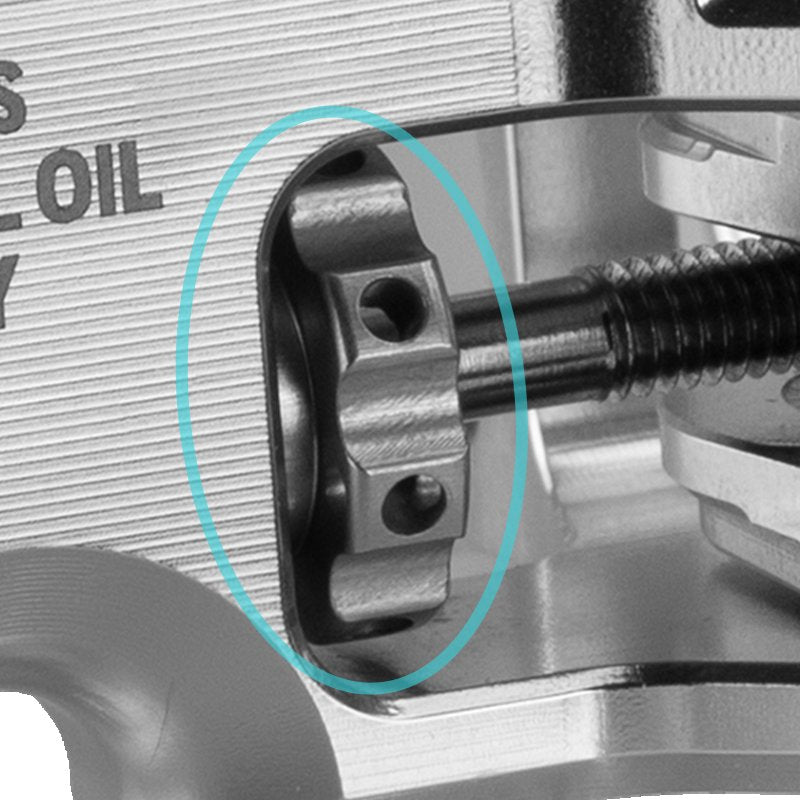

| Adjustable Leverage Ratio | 1.5mm Allen Key to loosen the Two set screws first |
| LEVER BLADE | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver |
| Brake lever version | 1 Finger |

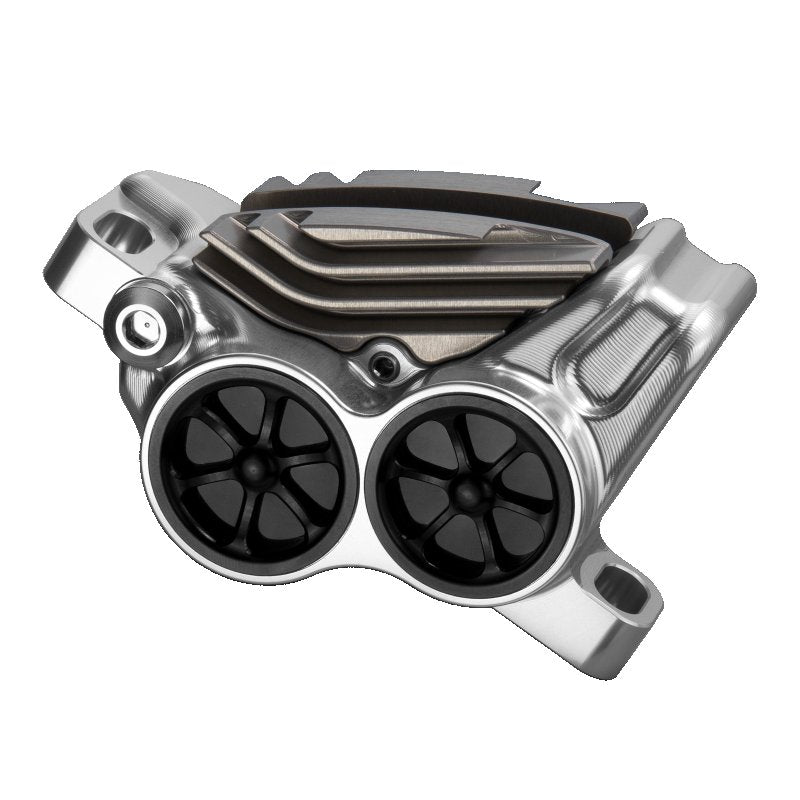

| MONOBLOC CALIPER | |
| Material | CNC 7075T6 Aluminum |
| Color | Black, Silver |
| MOUNT TYPE | Post mount |
| Piston | 2x18mm, 2x20mm Stainless steel Pistons |
| Screws | Stainless Steel |
| Pads type | Sintered EP-44 and Carbon Ceramic VP-44 |
| Hose | |
| Hose size | Outside Diameter 5mm，Bore 2.2mm |
| Hose length | 110cm front & 180 cm rear |
| Hose finish | Black, Braided T200 Oil Hose |
| INTENDED USE | Downhill, Enduro, All-Mountain |
| Rotors |
Not included, optional (180 mm|200mm | 203 mm|220mm | 223 mm) Recommending Lewis 2.3mm rotors or other brands of 2.0mm -2.5mm thick rotors |
| Adapter | Not included |
| WEIGHT | Lever 109g, Caliper 202g (wihtout brake pads) |
| Oil | Mineral oil |
| Bleed Kit Recommendation | Lewis Bleeding Kit |
