TERRA AERO CLX
TERRA AERO CLX
Gravel-løb kræver nu samme niveau af aerodynamisk disciplin, som før kun fandtes inden for internationale landevejscykelløb. Rytterne presser farten op, hvor aerodynamikken gør en forskel – og de gør det på mere ujævnt underlag med større dæk. Op til 5,84 watt hurtigere end den tidligere generation, med 50 mm forkortet aerodynamisk design, det første af sin slags.
Rims
Forfælg

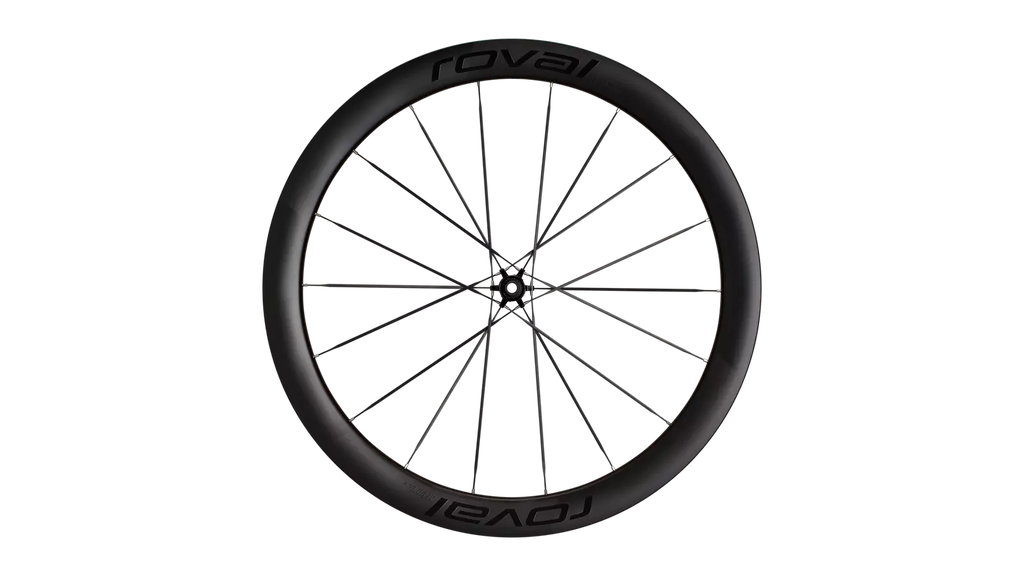

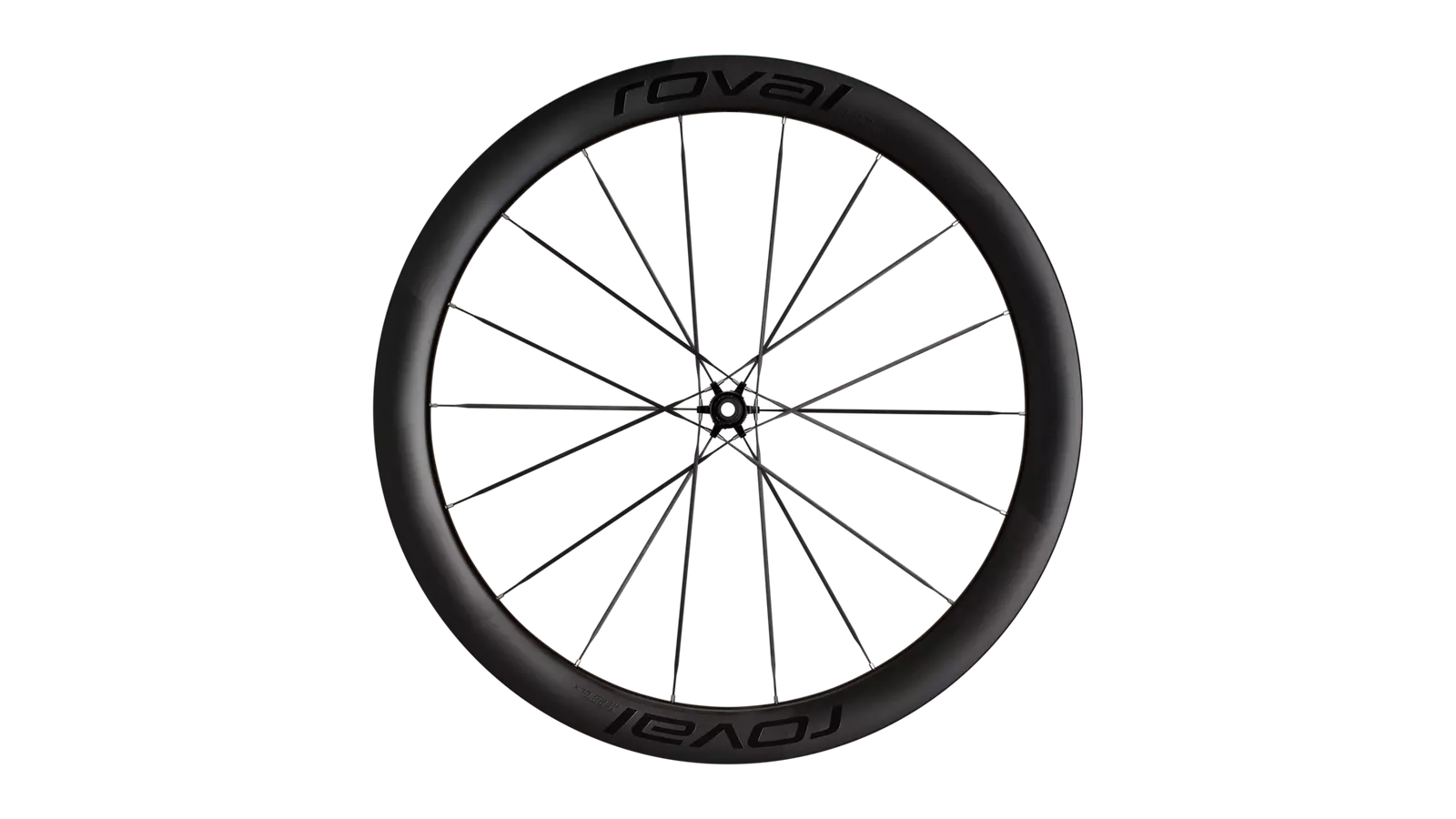

Terra Aero CLX Carbon Clincher, 700c (CR2570)
Forfælgsdimensioner

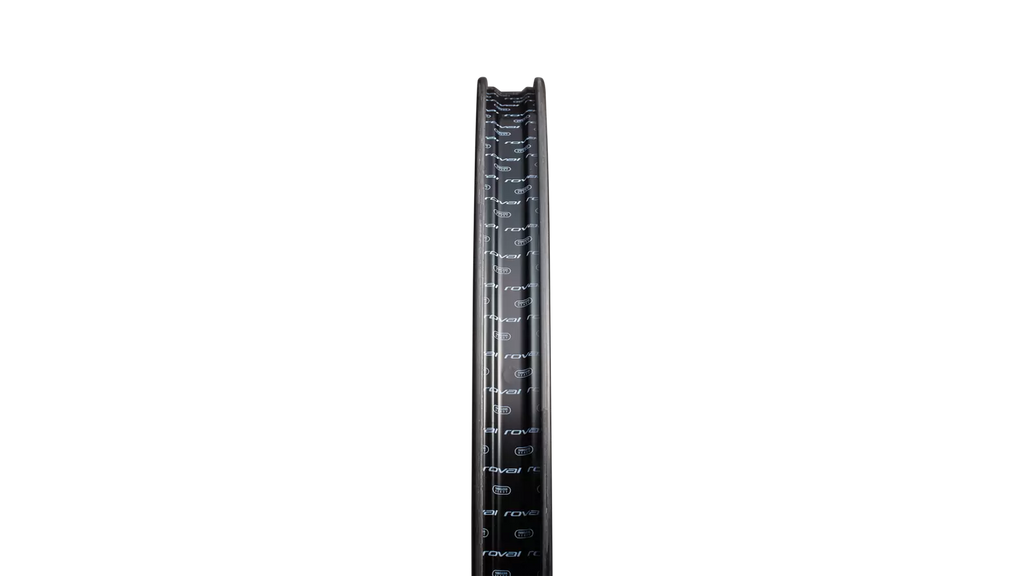

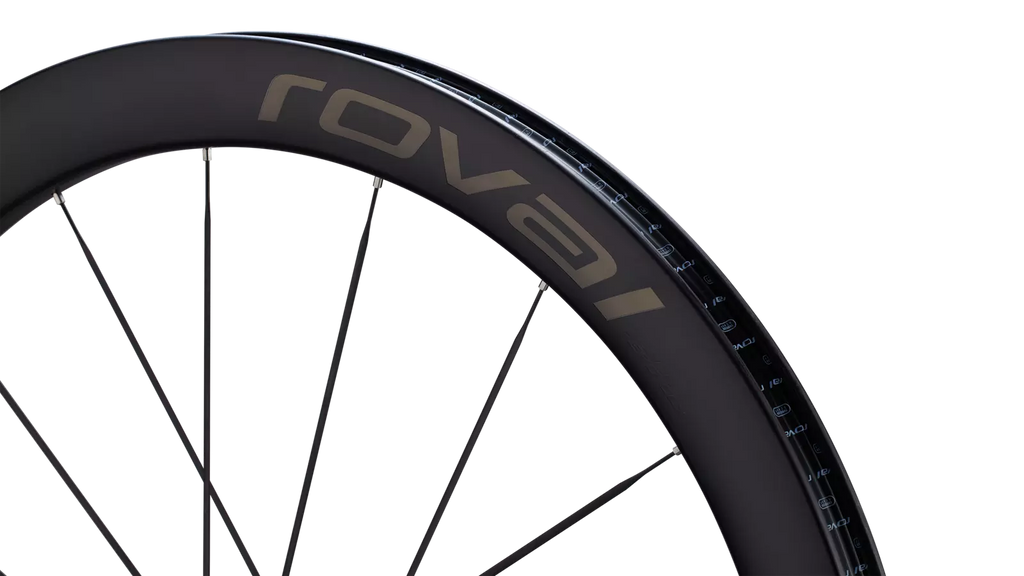

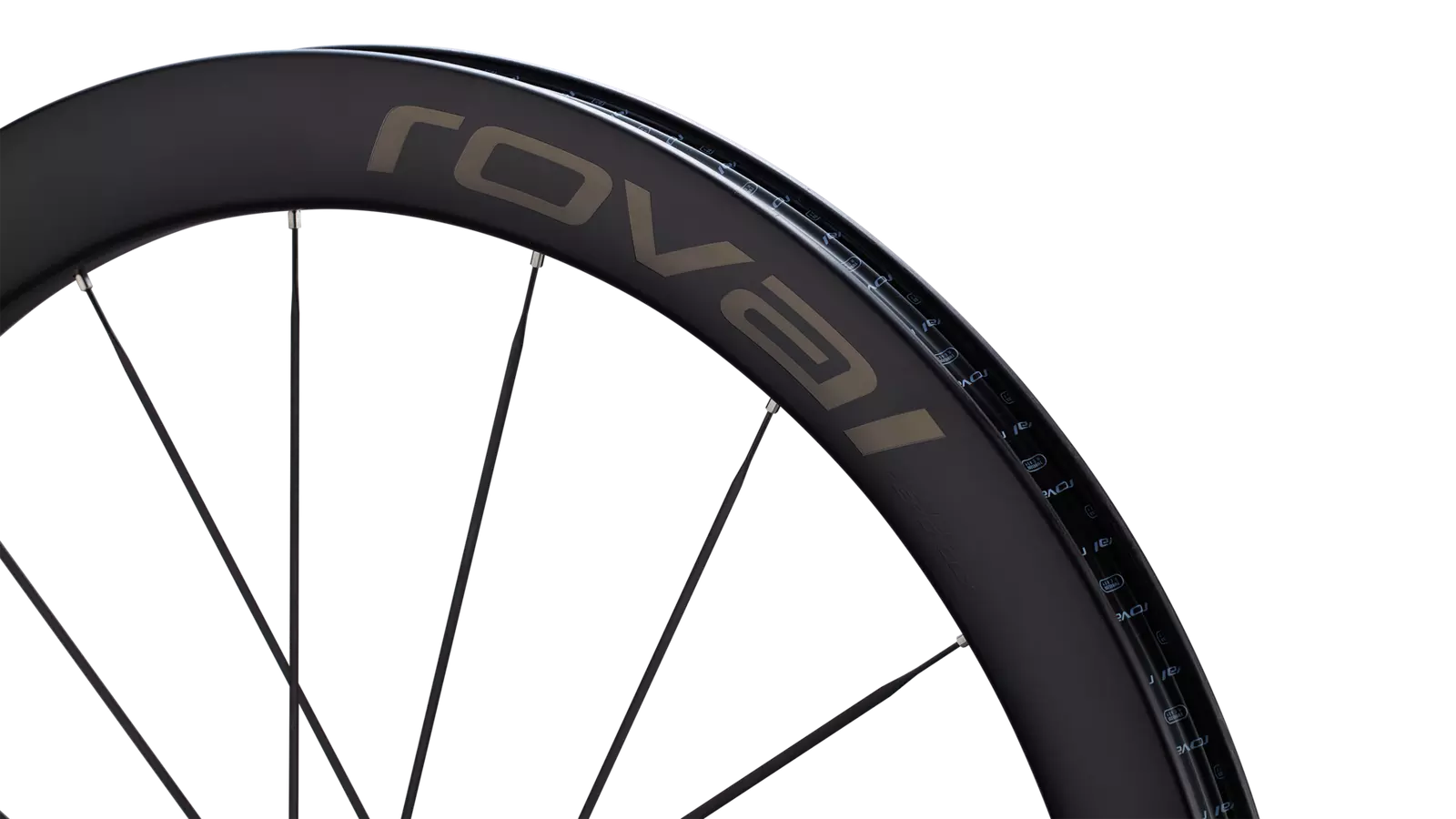

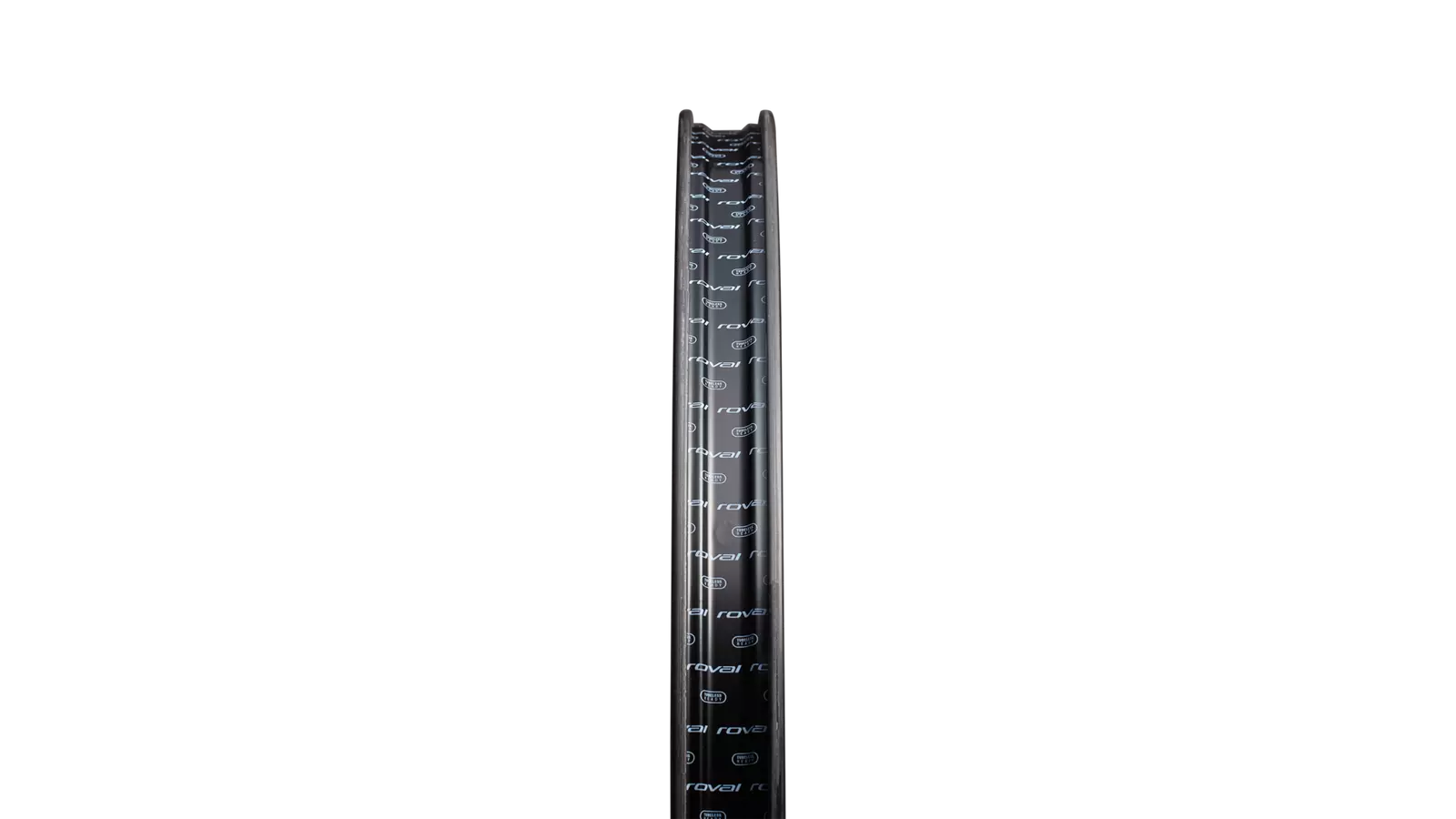

Depth: 50mm, External Width (at widest point): 38.5mm, Internal Width: 27mm, Bead Hook Width: 5.38mm
Bagfælg

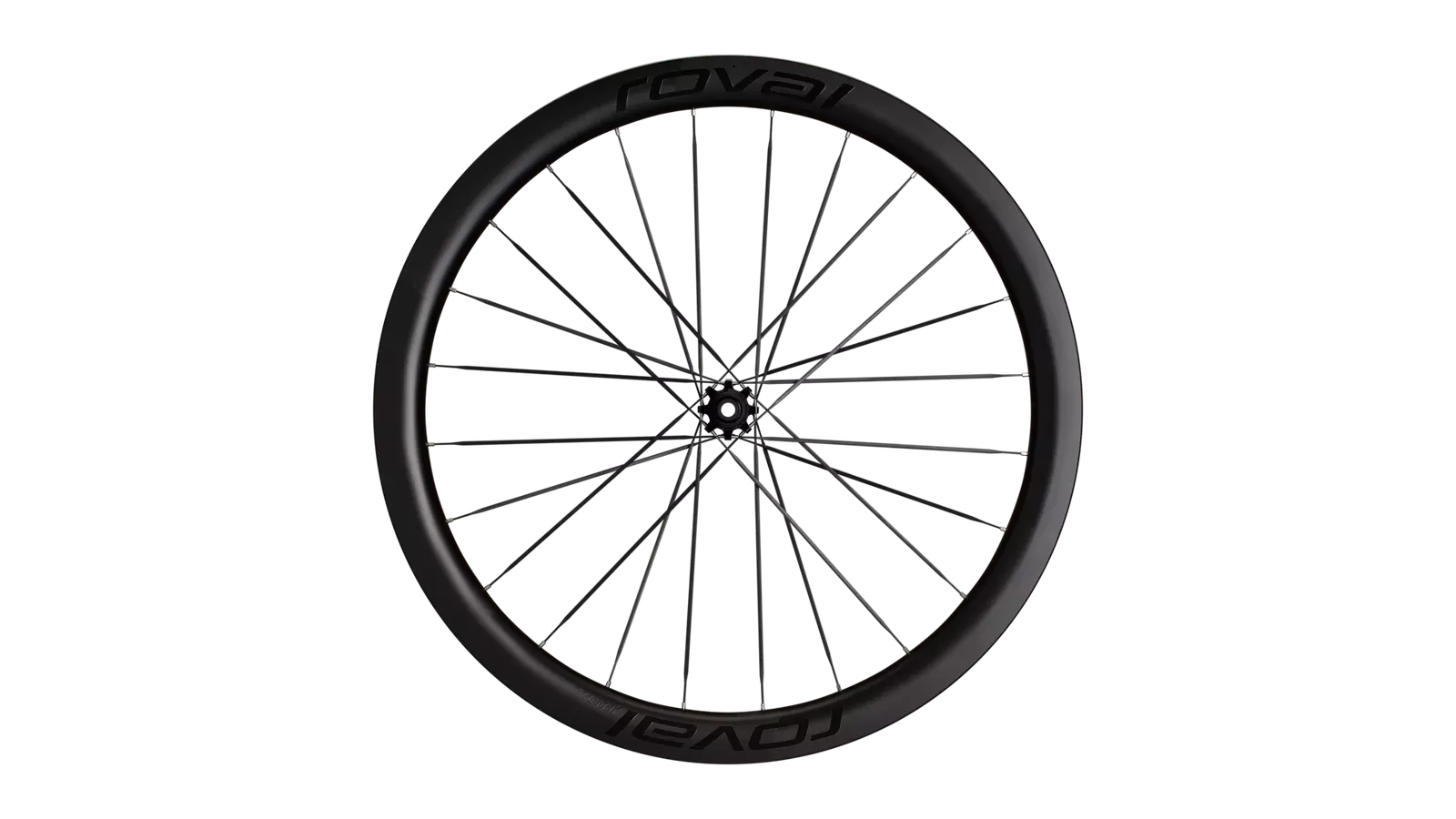

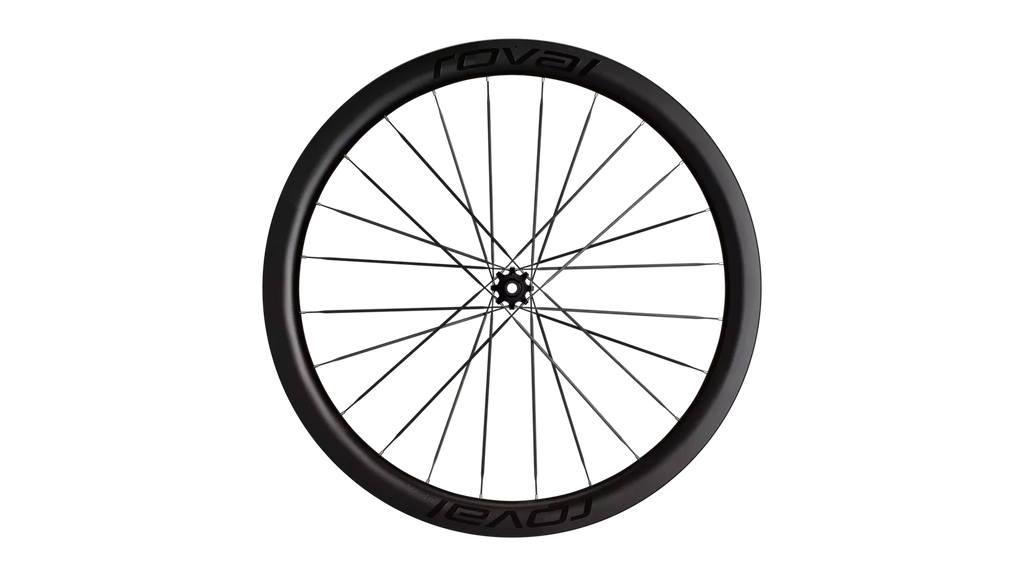

Terra Aero CLX Carbon Clincher Rear, 700c (CR2571)
Bagfælgsdimensioner
Depth: 45mm, External Width (at widest point): 38.4mm, Internal Width: 27mm, Bead Hook Width: 5.38mm
Fælgkonstruktion
Carbon Clincher Hooked
Hjulstørrelse / ETRTO
622 × 27 (700c)
Antal huller
Front: 18H, Rear: 24H
Tubeless-kompatibilitet
Yes
Indsats-kompatibilitet
Yes
Bremse-kompatibilitet
Disc (Centerlock)
Ventilforlængerlængde
Roval Tubeless Valve, Alloy 70mm (Front) 60mm (Rear)
Hubs
Front Hub

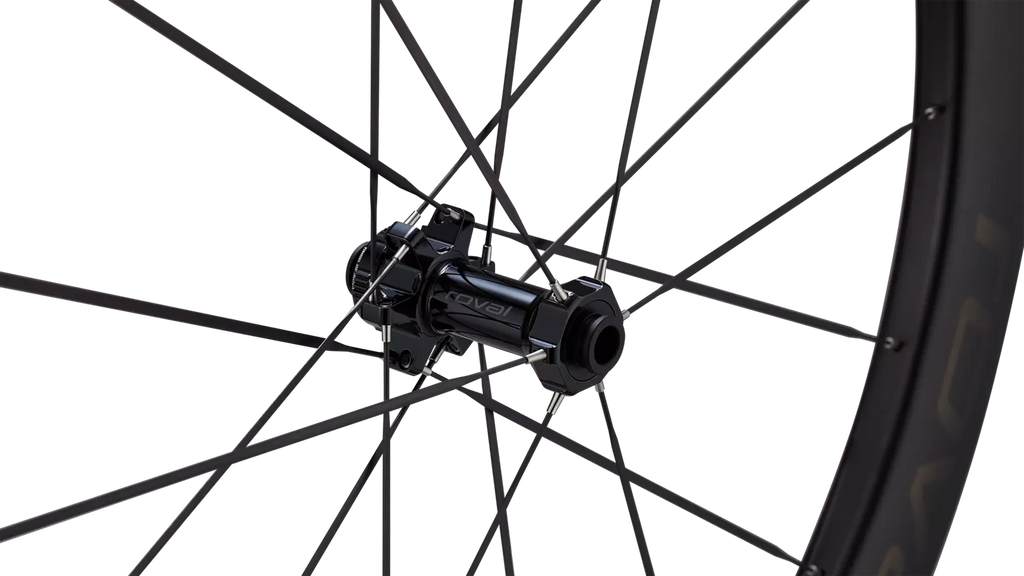

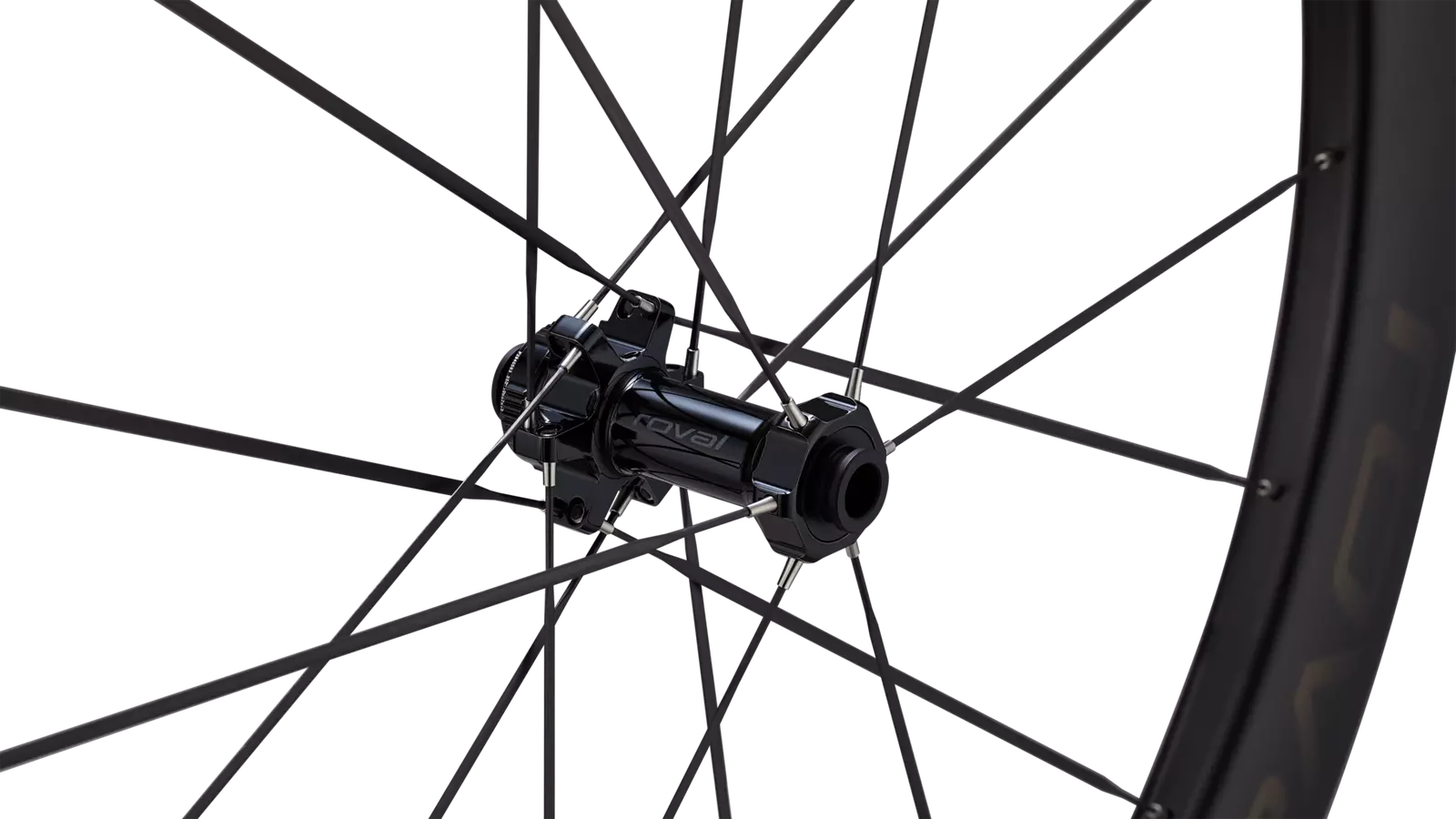

Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
Rear Hub

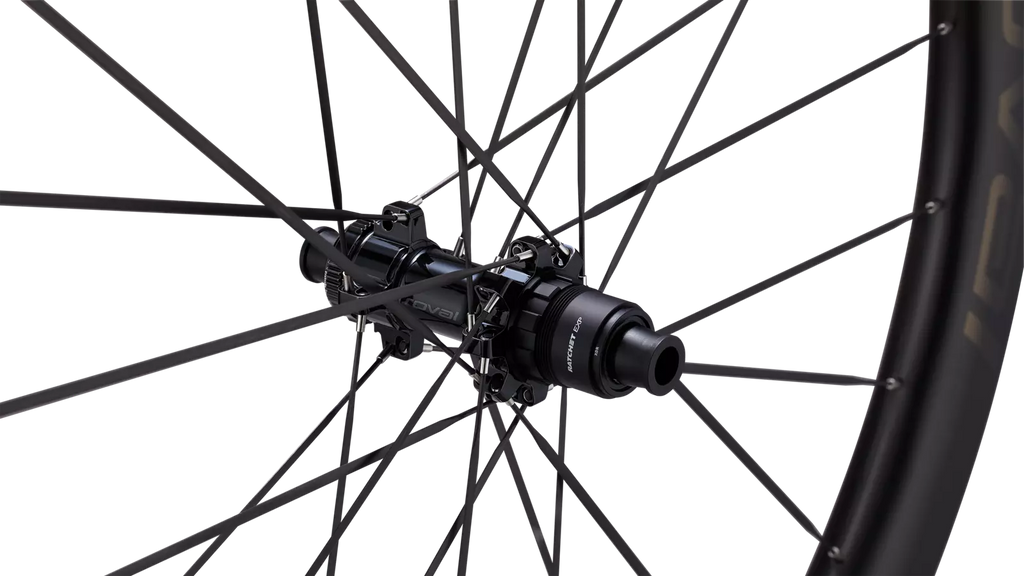

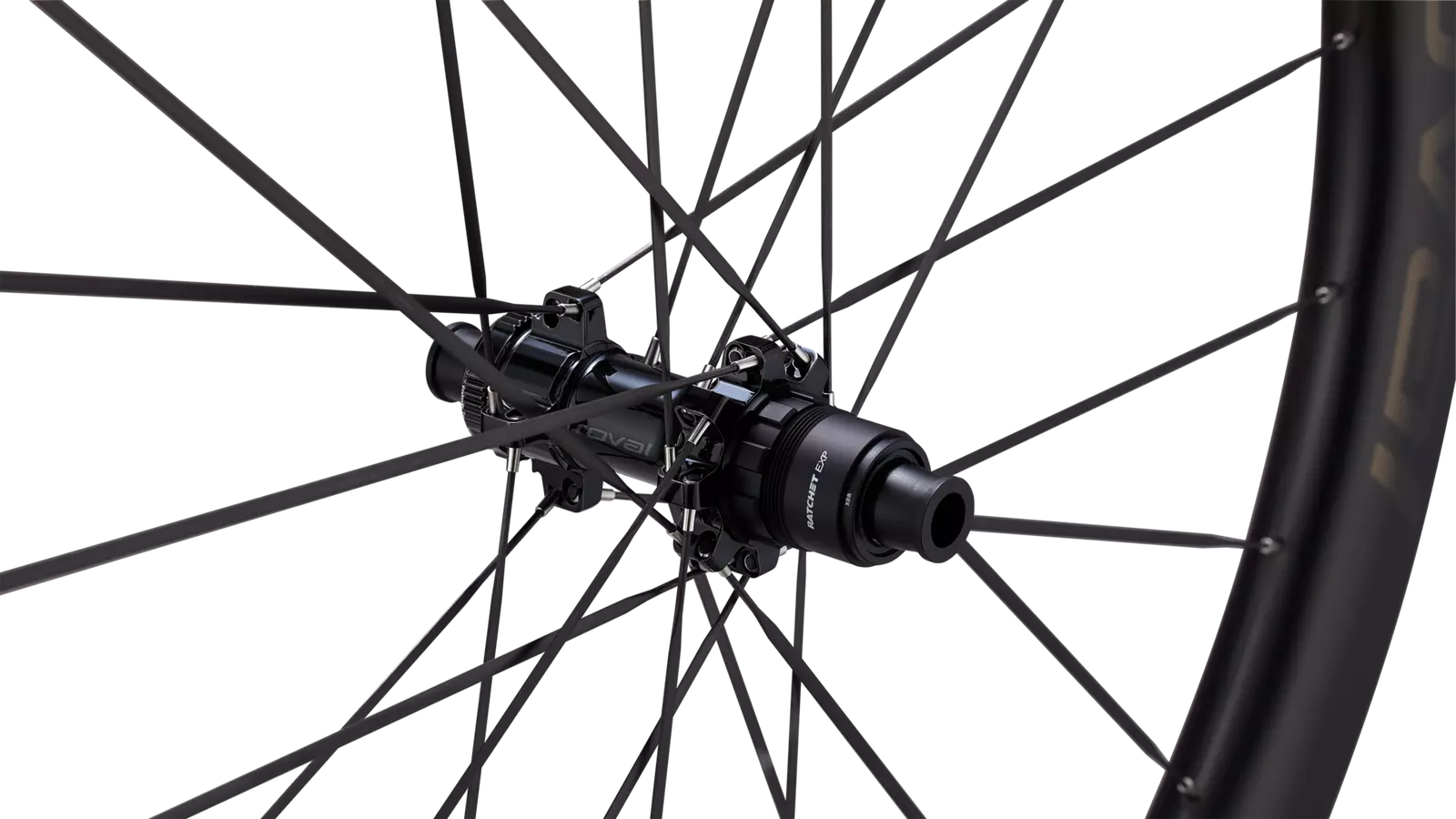

Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
Front Hub Bearing
DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5mm), NDS: 6802 (15 x 24 x 5mm)
Rear Hub Bearing
DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7mm), NDS: 6802 (15 x 24 x 5mm)
Rear Freehub Body
DT Swiss Ratchet EXP (36T ): Sram XD-R
Eger
Front Spokes
Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 264mm, NDS: 274mm)
Rear Spokes
Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 280mm, NDS: 276mm)
Front Lacing Pattern
Two-Cross / Radial (2:1), Not Tucked
Rear Lacing Pattern
One-Cross / Three-Cross (2:1), Not Tucked
Nipples
ARRIS MK4 Spoke Nipple Alloy, 6mm
Dæk
Approved Tire Widths
35mm-60mm (2.2")
Max Pressure
35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi
Tire Type
Clincher Tubeless and Clincher Tube Type
Tubeless Tape Width
30mm
Design Tire
Tracer TLR 45mm
Vægt
Front Weight
640g (with valves and tape)
Rear Weight
700g (with valves and tape)
Wheelset Weight
1340g (with valves and tape)
General
Extras
4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
E-bike Approved
No
Certifications
ISO 5775-2, UCI Approved
Weight Limit
275 lbs / 125 kg
Assembly Method
Hand Built
